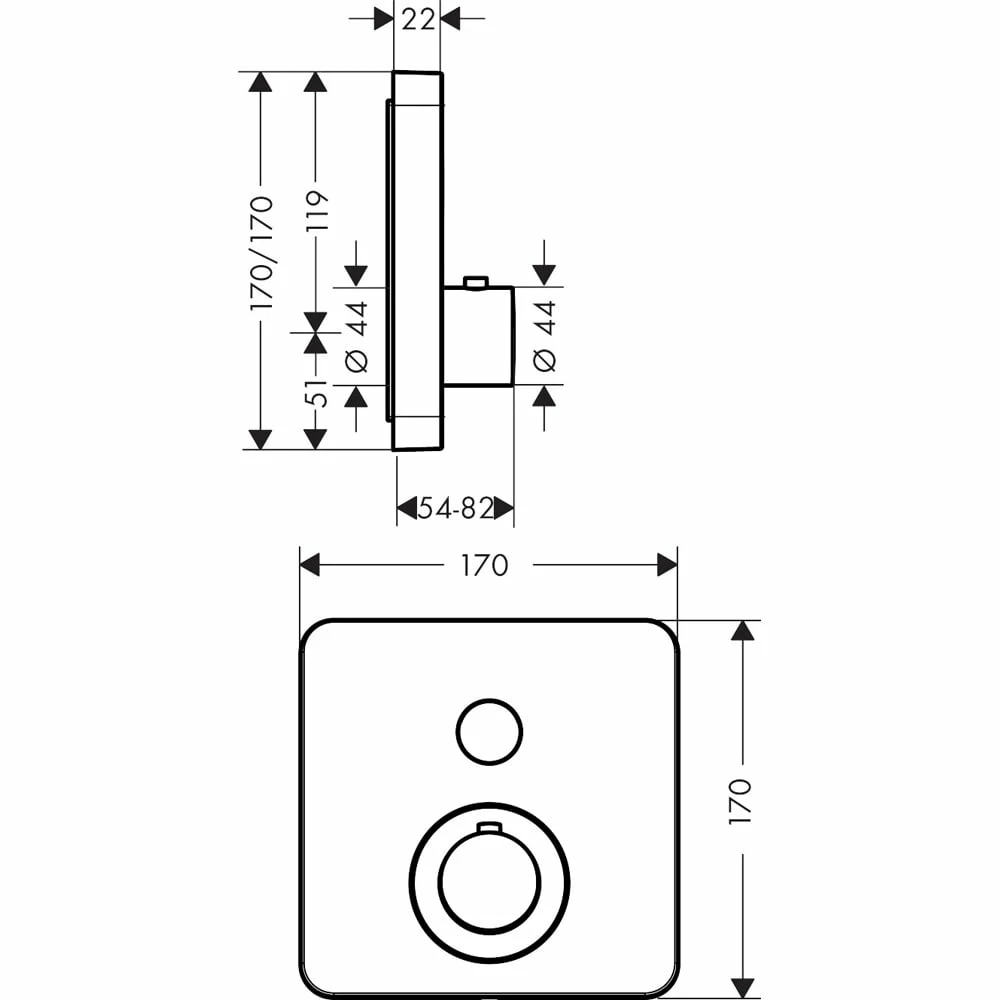

| DIMENSIONS | |
|---|---|
| Length (Left to Right) | 170mm |
| Height | 170mm |
| PRODUCT FEATURES | |
|---|---|
| Colour | Stainless Steel |
| Valve Type | Wall Mounted |
| Minimum Bar Pressure | 1.0 Bar – High Pressure |
| Maximum Bar Pressure | 10 bar |
| WRAS Approved | Yes |
| Installation | Concealed |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Noise class: I
- Safety stop at 40°C
- Thermostat cartridge
- Designed to run 1 function
- Connection type: basic set
- Maximum flow rate (at 3 bar): 26 l/min
- Thermostat is delivered with button On/Off
- Select push-button on / off control for 1 outlet
- Winner of the iF product design award 2016
- Maximum temperature can be adjusted on installation
- If running with a pump, please specify a universal (negative head) pump.
Required Parts
- AXOR iBox Universal Basic Installation Kit ½” &¾”
