| DIMENSIONS | |
|---|---|

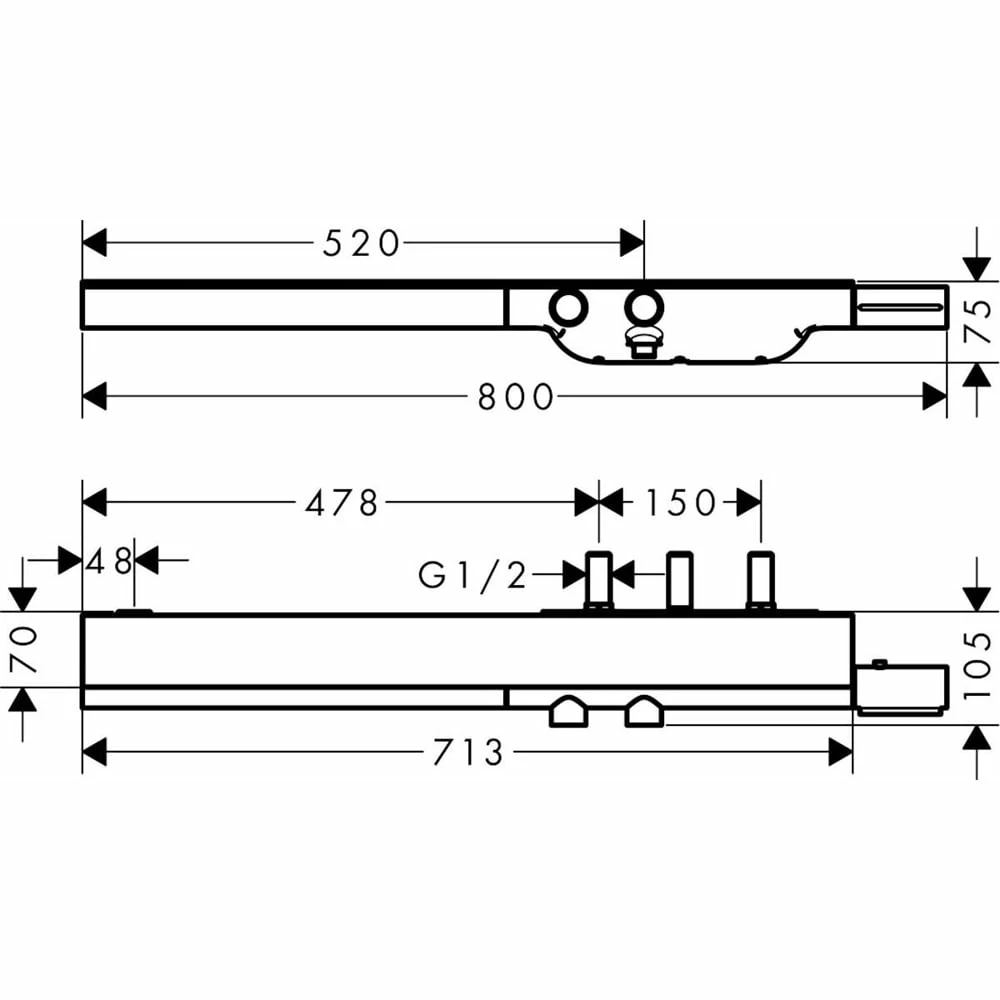

| Length (Left to Right) | 713mm |
| PRODUCT FEATURES | |
|---|---|
| Colour | Nickel |
| Finish | Brushed |
| Minimum Bar Pressure | 1.0 Bar – High Pressure |
| Maximum Bar Pressure | 10 Bar |
| WRAS Approved | Yes |
| Installation | Wall mounted |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Safety stop at 40°C
- Non-return valve
- Connection thread ½”
- Made of safety glass
- Shelf colour: mirror glass
- Material handles: metal
- Designed to run 2 outlets
- Multiple outlets can be run simultaneously
- Select push button on / off control for 2 outlets
- Flow rate upper outlet 22 l/min at 3 bar
- Flow rate hand shower connection 15 l/min at 3 bar
- Start/ stop cartridge, thermostat cartridge
- Maximum temperature can be adjusted on installation
- If running with a pump, please specify a universal (negative head) pump
- Exposed design allows easy installation, all working parts are outside of the wall
- Control of an external shower or bath tub filler via concealed connection G ½ possible
Required Part
- Axor Basic Set for Thermostat Exposed/Concealed Installation 2 Outlets
Optional
- Axor Shower Hose 1.25m With Volume Control
- AXOR Shower Chrome Shower Hose 1.60m With Volume Control
