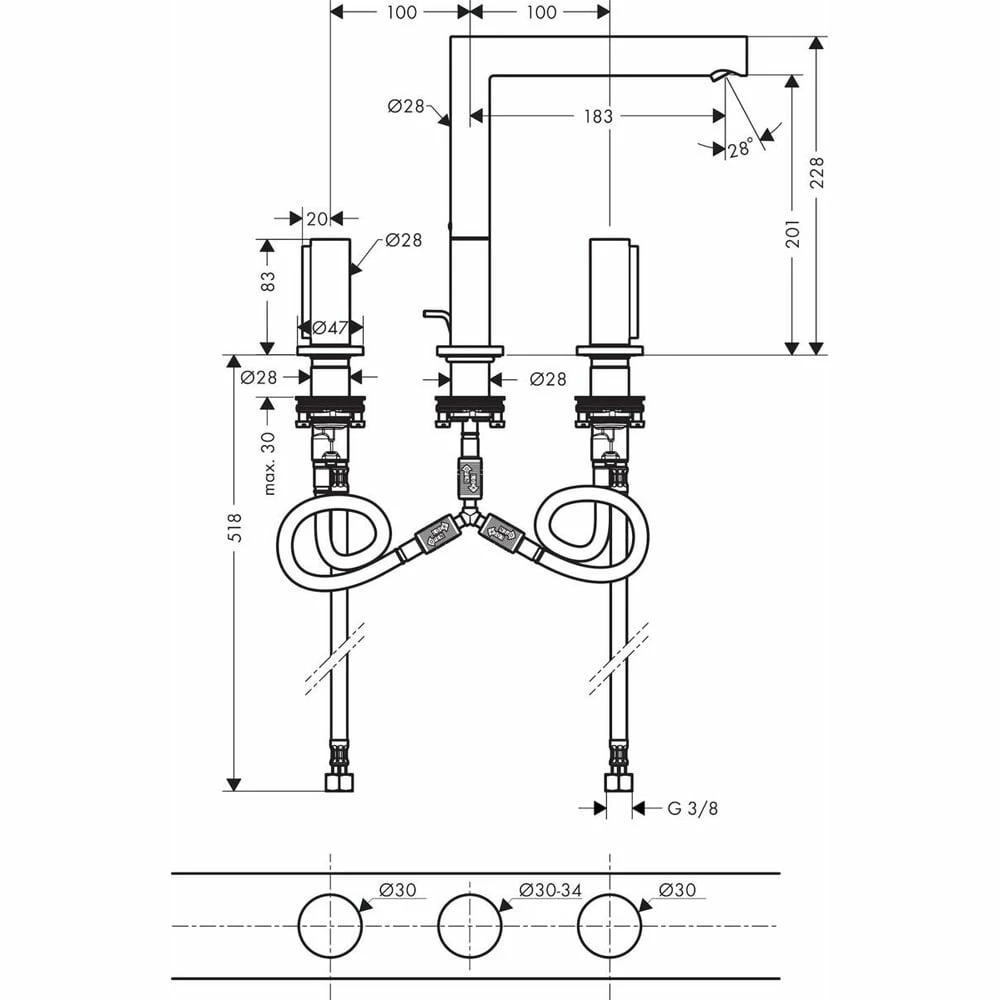

| DIMENSIONS | |
|---|---|
| Height | 228mm |
| Tap Hole Diameter | 28mm |
| Spout Reach | 183mm |
| Spout Height | 201mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Contemporary |
| Colour | Nickel |
| Finish | Brushed |
| Tap Holes | 3 |
| Spout Style | Swivel spout for single and multiple bowl sinks |
| Valve Type | Quarter Turn |
| Ceramic Cartridge Installed | This tap is installed with an interchangeable ceramic valve. (Water within UK can be hard which cause lime scale build up inside the valve. The valve can be replaced without the need of replacing the whole tap at a later date.) |
| Minimum Bar Pressure | 1.0 Bar – High Pressure |
| Maximum Bar Pressure | 10 Bar |
| WRAS Approved | Yes |
| Installation | High Rise Basin Mixer Taps |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Laminar spray
- Swivel spout 110°
- Pop-up waste set 1¼”
- Flow rate (at 3 bar): 5 l/min
- Ceramic shut-off cartridges hot/cold 90°
- ComfortZone 200 provides space for greater freedom of movement
THE UNION OF LOGIC, MORALITY AND MAGIC
- “AXOR Uno is guided by logic, morality, and magic. For me, morality ultimately means the social and environmental responsibility we have as designers. Magic means creating products that people love. And logic is evident in the collection. Because of that, it’s more beautiful. Understanding a product contributes to the aesthetic experience. AXOR Uno is proof of that.”
THE IDEAL COMPLEMENT. THE PERFECT COUNTERPOINT
- AXOR Uno embodies the Purist ethos of simplicity, balance and self-evident function. Consisting of one pipe in a parabolic curve or two fused at a right angle, AXOR UNO mixers approximate the proportions of the golden ratio. Invariably striking in chrome or one of up to 15 exclusive AXOR FinishPlus surfaces, the collection offers an ideal complement to modern, minimalist settings, but can also provide the perfect counterpoint to more traditional décor.
RADICAL SIMPLICITY ON THE OUTSIDE. SUPREME SOPHISTICATION WITHIN
- Deceptively simple in form and function, AXOR Uno features a radically reduced aesthetic that encases state-of-the-art technology for effortless control of water volume and temperature – all at the touch of a button via Select technology, or with a simple push of the intuitive Zero handle. Simpler still, AXOR Uno electronic mixers, mounted on the wall or wash basin, feature infrared sensors that detect when water should flow.
AT THE WASH BASIN AND BATH, VARIATIONS ON A MINIMALIST THEME
- At the wash basin, AXOR Uno offers wall-mounted mixers for concealed installation, as well as three-hole and single lever mixers with classic loop handles, zero handles, infrared sensors or Select technology. At the bath, single-lever, wall-mounted and floor-standing mixers are available in both curved and rectilinear variants. Rim-mounted three-hole and four-hole mixers come with bowed spout and ergonomic hand shower.
PURIST DESIGN IN THE SHOWER FOR PURE SHOWER PLEASURE
- AXOR Uno offers a wide range of options for the shower, from single-lever mixers, thermostats and diverter valves for concealed installation, to exposed sets with hand showers offering three spray types. Born of similar design principles to those of AXOR Uno and so an ideal companion piece, the AXOR shower pipe 800, shown here in Polished Brass, includes overhead and baton hand shower, and features a mirrored glass shelf discreetly integrated into its exposed thermostatic mixer.
