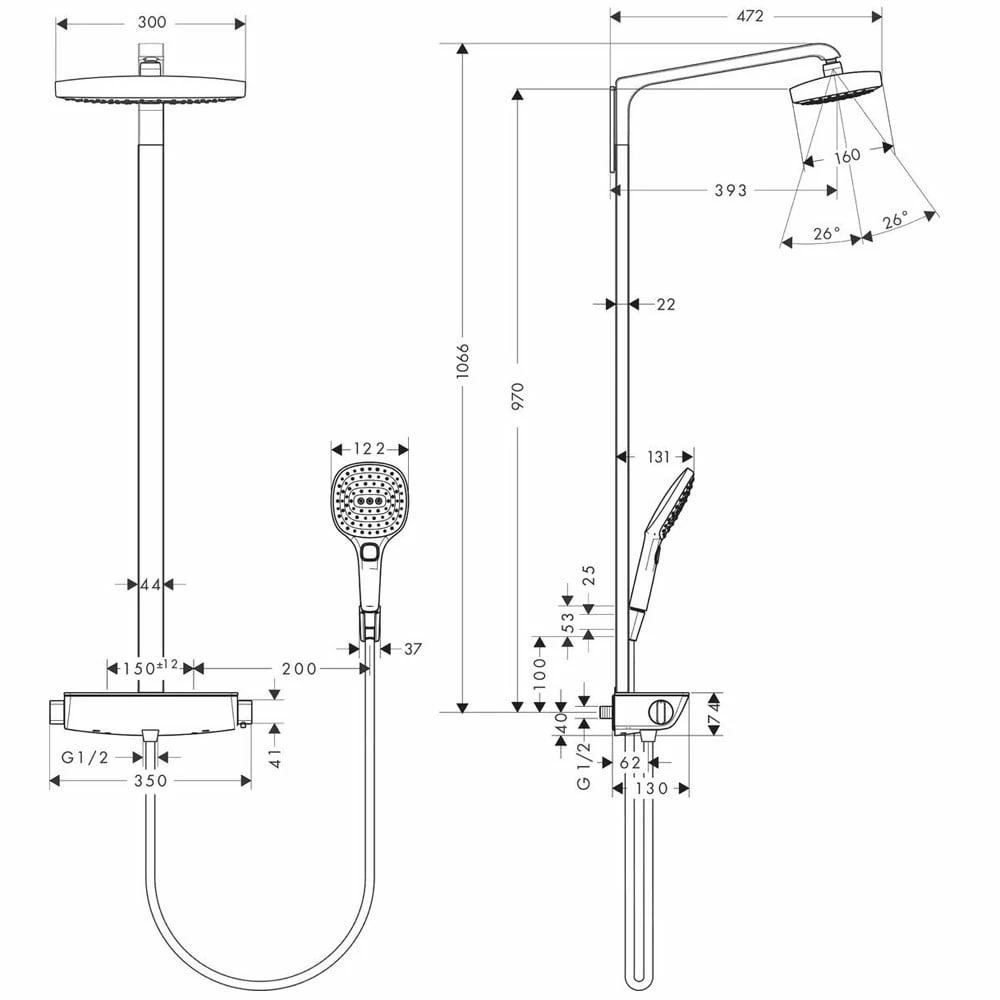

| DIMENSIONS | |
|---|---|
| Length (Left to Right) | 1066mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Contemporary |
| Colour | Chrome,White |
| Valve Type | Thermostatic |
| Minimum Bar Pressure | 1.2 Bar – High Pressure |
| Maximum Bar Pressure | 10 Bar |
| Installation | Exposed |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Safety stop at 40°C
- Connection thread ½”
- Connection dimension 1/2″
- Shelf made of safety glass
- Thermostat Ecostat Select
- Isolated water conduction
- Shelf colour: chrome or white
- Flow rate Rain 9 l/min at 3 bar
- Adjustable hot water limitation
- Flow rate RainAir 9 l/min at 3 bar
- Centre distance 150mm ± 12mm
- Maximum flow rate (at 3 bar): 9 l/min
- Overhead shower angle adjustable
- Spray type overhead shower: Rain, RainAir
- Shower arm length overhead shower: 393mm
- Spray type hand shower: RainAir, Rain, Whirl
Shower head size overhead shower: 300 x 160mm
Spray face surface in two variants: chrome or white
Select button to comfortably switch between spray modes
Exposed design allows easy installation, all working parts are outside of the wall
Outlets controlled via volume control/diverter and may not be used simultaneously
In case of installation on existing G ¾ connections, adaptor no. 02026000 must be used
CoolContact thermostat: Prevents the housing from heating up, making showering even safer
