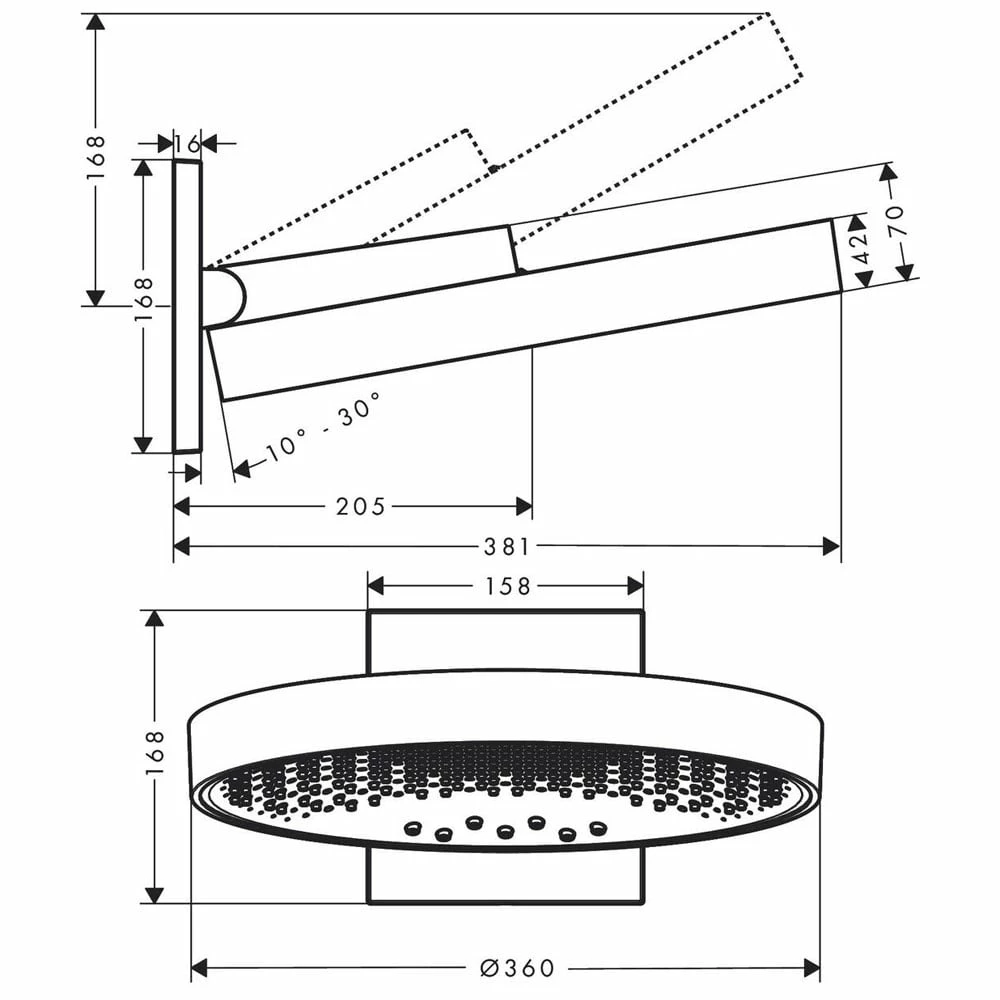

| DIMENSIONS | |
|---|---|
| Height | 168mm |
| Width (Front to Back) | 360mm |
| Depth (Top to Bottom) | 381mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Contemporary |
| Colour | Chrome |
| Finish | Polished |
| Minimum Bar Pressure | 1.7 Bar – High Pressure |
| Maximum Bar Pressure | 10 Bar |
| Installation | Wall mounted |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Frame: metal
- Spout 381mm long
- Spray face: aluminium
- middle spray disc: 205mm
- Shower head size: 360mm
- Spray disc surface: graphite
- Flow rate Rain 18 l/min at 3 bar
- Maximum flow rate 28,1 l/min at 3 bar
- Flow rate RainStream 16 l/min at 3 bar
- Overhead shower removable for cleaning
- Shower head vertically inclinable by 10-30°
- Flow rate PowderRain (at 3 bar): 20 l/min at 3 bar
- Installation: wall-mounted – for installation on iBox
- Spray pattern: PowderRain, Intense PowderRain, RainStream
- The 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
Required part
- Hansgrohe Basic Set iBox Universal ½” and ¾”
