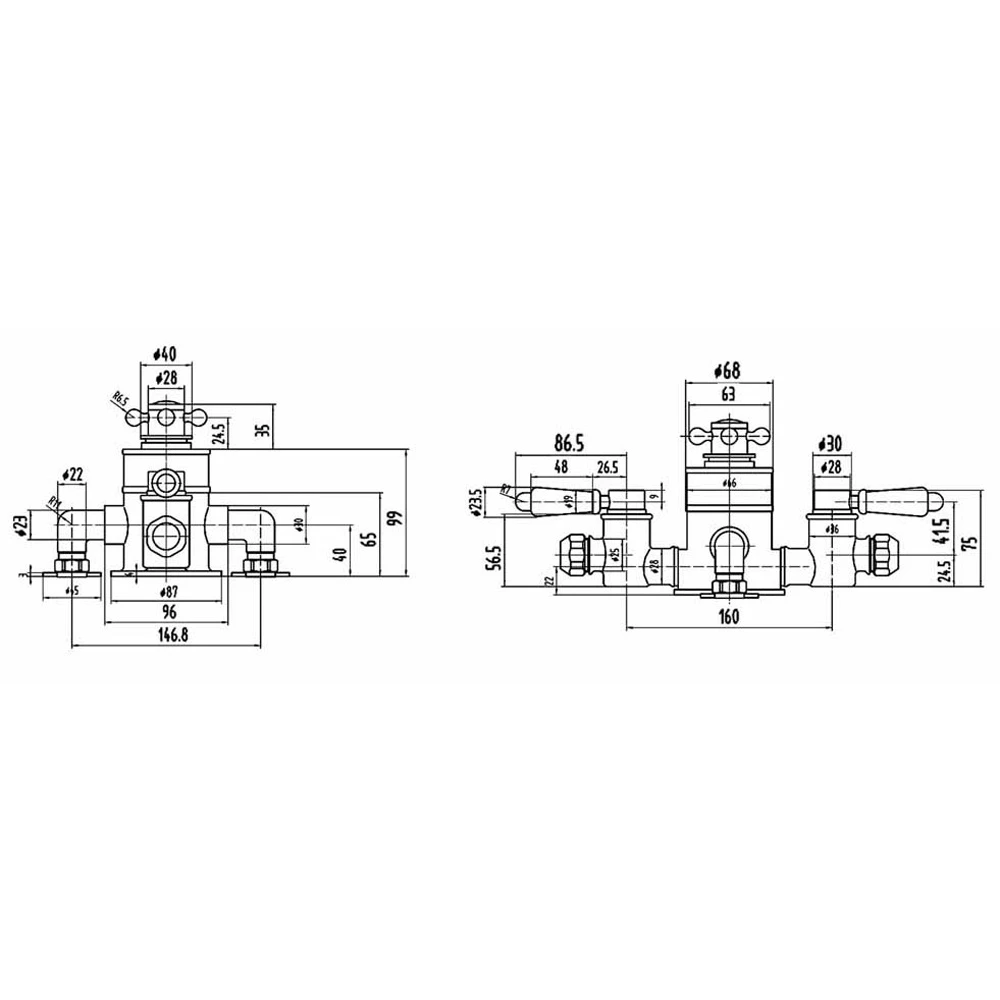

| DIMENSIONS | |
|---|---|
| Height | 332mm |
| Width (Front to Back) | 195mm |
| Depth (Top to Bottom) | 135mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Traditional |
| Colour | Black,Chrome |
| Finish | Polished |
| Material | Brass |
| Valve Type | Thermostatic |
| Minimum Bar Pressure | 0.1 Bar – Low Pressure |
| Guarantee | 20 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Installation Required
- Stain Rust Resistant
- Unsuitable for commercial use
- Accurate flow control
- Excellent flow rates – even at low pressure
- Simply remove the cartridge turn 180° and replace
- Combining the elegance of traditional styling with the precision and technology of modern day design
- Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
- Thermostatic control to +/- 1 degree – even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down within 1.5 seconds
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
Specification:
- Mount Type: Wall
- Valve/Cartridge Type: 1/4 Turn Ceramic Disc
- Valve Mount Type: Exposed Shower
- Valve Handle Type/Shape: Lever Handle, Crosshead Handle
- No. Of Handles (Showers): 3
Flow Rate & Additional Sizes:
- Flow Rate 0.1Bar l/m (Showers): 4.5
- Flow Rate 0.5Bar l/m (Showers): 13
- Flow Rate 0.5Bar l/m (Showers): 13
- Flow Rate 2Bar l/m (Showers): 26
- Flow Rate 3Bar l/m (Showers): 33
- Minimum Bar Pressure:0.1 Bar – Low Pressure
- Pipe Size: 15 mm (1/2″ BSP)
- Pipe Centres: 150mm
