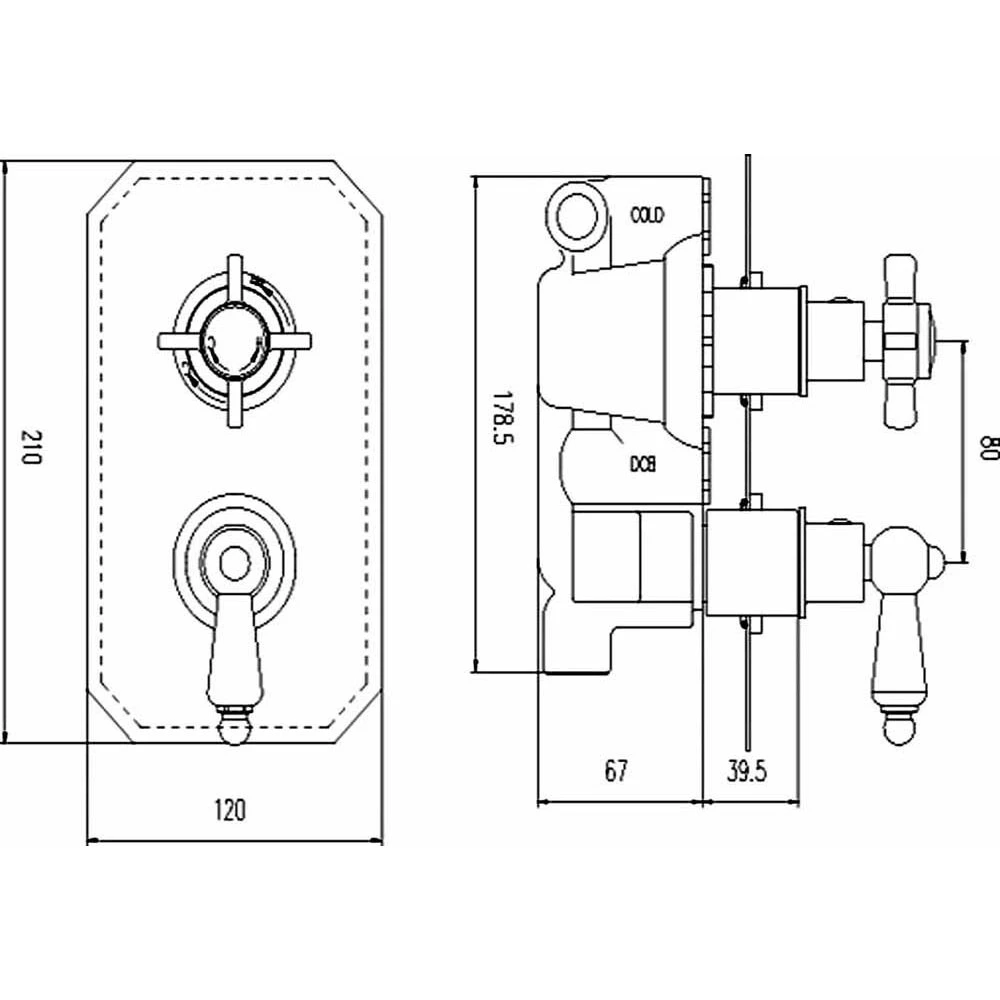

| DIMENSIONS | |
|---|---|
| Height | 210mm |
| Width (Front to Back) | 120mm |
| Depth (Top to Bottom) | 135mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Traditional |
| Colour | Chrome |
| Material | Brass |
| Valve Type | Thermostatic |
| Minimum Bar Pressure | 0.1 Bar – Low Pressure |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Installation Required
- Stain Rust Resistant
- Unsuitable for commercial use
- Accurate flow control
- Can be fitted vertically or horizontally
- Excellent flow rates – even at low pressure
- Manufactured from high quality brass & ABS
- Simply remove the cartridge turn 180° and replace

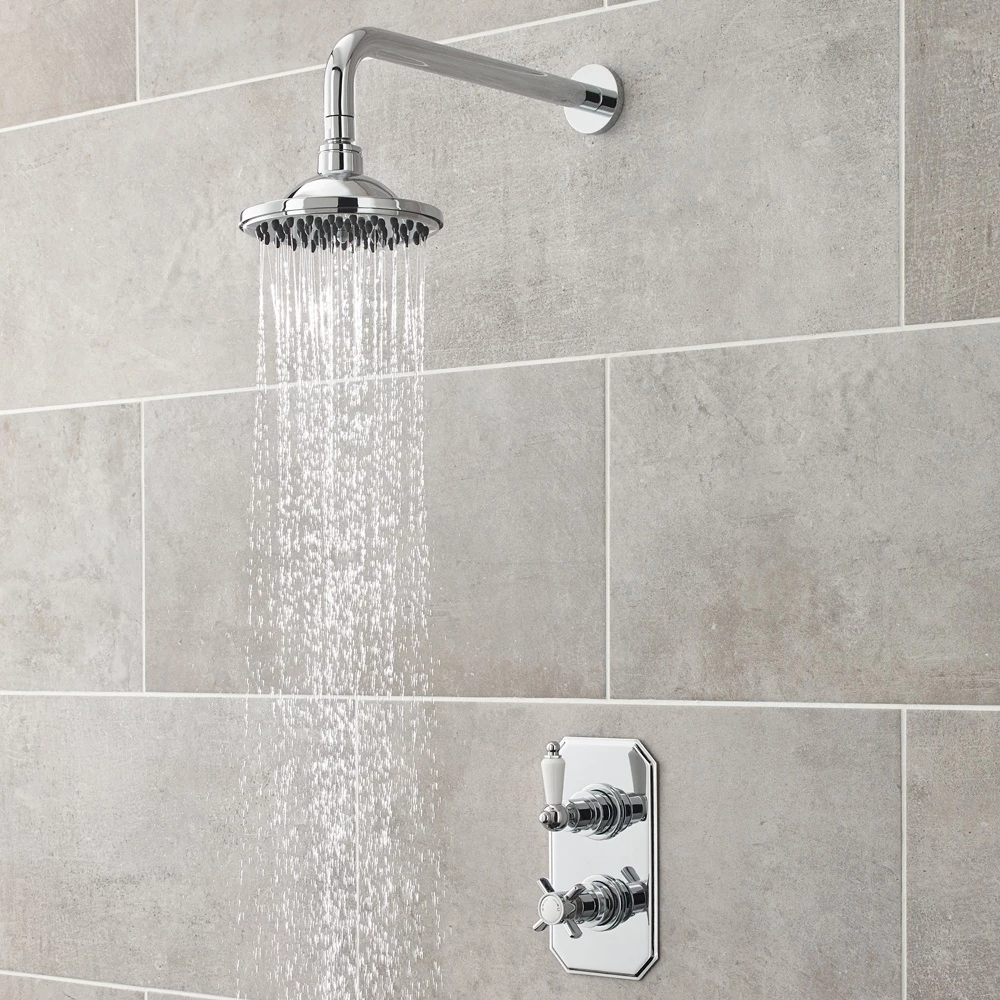

- Bring an Edwardian sensibility to your bathroom with this traditional shower
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
Specification:
- Mount Type: Wall, Recessed
- Shower Valve Style Shape: Bevelled
- Valve/Cartridge Type: 1/4 Turn Ceramic Disc
- Valve Mount Type: Concealed Shower
- Valve Handle Type/Shape: Crosshead Handle, Lever Handle
- No. Of Handles (Showers): 2
Flow Rate & Additional Sizes:
- Flow Rate 0.1Bar l/m (Showers): 5.5
- Flow Rate 0.5Bar l/m (Showers): 14
- Flow Rate 0.5Bar l/m (Showers): 14
- Flow Rate 2Bar l/m (Showers): 29
- Flow Rate 3Bar l/m (Showers): 44
- Minimum Bar Pressure:0.1 Bar – Low Pressure
- Pipe Size: 15 mm (1/2″ BSP)
Approval:
- WRAS Approved (Showers)
- WRAS Approval Number (Showers)1703023
- TMV2 Approved (Showers)
- TMV3 Approved (Showers)
- TMV2 Approval Number (Showers): BC1875/0817
- TMV3 Approval Number (Showers): BC1119/1212
